OTV系列高性能震荡式直角分度器

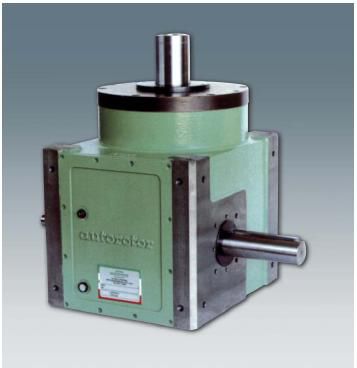

AUTOROTOR OSCILLATING drive OT series 5 is a mechanical square axis device. A mechanical cam with followers transforms the inlet shaft uniform rotation into a predetermined oscillation of the output turret.

OT5 系列Autorotor擺動式驅動是機械式的直角軸設備。一個機械凸輪與配套裝置將輸入的勻速轉動轉化爲設定的擺動輸出到工作臺。

The oscillation angle can be up to 90°. The cam shape generates an angular displacement of the turret which follows mathematically set acceleration curves.

擺動角度可以達到90°. 通過凸輪的形狀變化來按照加速曲線產生角度的偏移。



CAMMA IN ACCIAIO LEGATO E TRATTATO

High tensile steel cam with hardened and ground profiles

淬火硬化圓形外緣高強度鋼凸輪

RULLI SPECIALI - ASSORBONO RIGIDAMENTE CARICHI ELEVATI

Special cam followers - They bear high load rigidly

專用凸輪從動滾輪-高剛性軸承

DISCO DIVISORE

Indexing disk

分度盤

ALBERI ROTANTI CON CUSCINETTI A RULLI CONICI CONTRAPPOSTI

Shafts rotating on opposite conical roller bearings

輸入輸出軸採用倒錐形滾珠軸承

MOZZO CENTRALE OSCILLANTE FORATO (USCITA)

Central oscillating hollow hub (outlet)

中心搖擺中空花鼓

ALBERO IN ENTRATA

Inlet shaft

輸入軸

SUPERFICI PIANE Dl APPOGGIO LAVORATE A MACCHINA

Machined planes for flat contact

機加工法蘭確保平面接觸

PREDISPOSIZIONE ATTACCO DIRETTO RIDUTTORE

Prearrangement for direct installation of worm gear reducer

預留減速機安裝位

CASSA PRISMATICA IN GHISA A TENUTA (LUBRIFICAZIONE CON GRASSO PERMANENTE)

Sealed cast iron case (long life grease lubrication)

密封棱柱形箱體&油脂潤滑，確保長使用壽命
